Short pitch stainless steel chain SA&SK series attachments | China conveyor chain manufacturers | Standard roller chain supplier
- group name
- Stainless Steel Chain Attachments
- Min Order
- 100 meter
- brand name
- ZMIE Chain Manufacturer
- Nearest port for product export
- Shanghai, Ningbo
- Delivery clauses under the trade mode
- FOB, CFR, CIF, CIP, DDP, Express Delivery
- Acceptable payment methods
- T/T, L/C
- update time
- Thu, 21 Nov 2024 17:40:45 GMT
Paramtents
Material： Stainless Steel
Heat Treatment： Through hardening
Color: Zincplated,Nickel Plated,Black Finished
Shipping: Support Sea freight.Express.Land freight.
Packging & Delivery
-
Min Order100 meter
Briefing
Zmie Stainless Steel roller chain is made from high grade materials.
Detailed
Short pitch stainless steel chain SA&SK series attachments | China conveyor chain manufacturers | Standard roller chain supplier

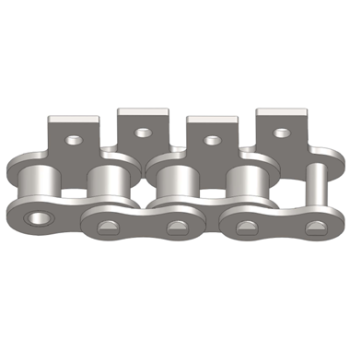

Short pitch stainless steel chain SA&SK series attachments
SA1
SK1
ZMIE Chain No. | P | G | C | F |
T
|
d4 |
|
mm | mm | mm | mm | mm | mm | ||
08ASS | 40SS | 12.70 | 9.50 | 12.70 | 19.05 | 1.50 | 3.40 |
10ASS | 50SS | 15.875 | 12.70 | 15.90 | 25.25 | 2.03 | 5.50 |
12ASS | 60SS | 19.05 | 15.90 | 18.30 | 29.33 | 2.42 | 5.50 |
16ASS | 80SS | 25.40 | 19.10 | 24.60 | 34.70 | 3.25 | 6.80 |
20ASS | 100SS | 31.75 | 25.40 | 31.80 | 43.30 | 4.00 | 9.20 |
|
24ASS
|
120SS | 38.10 | 28.60 | 36.50 | 51.60 |
4.80
|
9.80 |
28ASS | 140SS | 44.45 | 34.90 | 44.50 | 62.00 | 5.60 | 11.40 |
32ASS | 160SS | 50.80 | 38.10 | 50.80 | 69.85 | 6.40 | 13.10 |
06BSS | 9.525 | 8.00 | 9.52 | 13.50 | 1.30 | 3.50 | |
08BSS | 12.70 | 9.50 | 13.35 | 18.90 | 1.60 | 4.30 | |
10BSS | 15.875 | 14.30 | 16.50 | 22.95 | 1.70 | 5.30 | |
12BSS | 19.05 | 16.00 | 21.50 | 28.60 | 1.85 | 6.40 | |
16BSS | 25.40 | 19.10 | 23.15 | 34.00 | 3.10 | 6.40 | |
Zmie Stainless Steel roller chain is made from high grade materials. These perform extremely well in environments that are acidic, alkaline, where direct contact with food is a consideration, where the chain will be exposed to water, and for very high or very low temperature locations ( -40° to +400°C ) where resistance to corrosion is a requirement.
•Stainless steel standard roller chain Features
•All components made from austenitic rust-proof steel
•All components receive surface finishing to remove stress raisers
•Lubrication that improves wear performance
•Tensile strength is approximately 65% that of standard carbon steel chain
